Description
Condenser Stereo Multi-Pattern FET Microphone, inc shock mount, wooden mic box and metal case. Each CK-40 Mic is individually serialized. Uses Include: Studio group vocals, acoustic guitar, mandolin, drum overheads, piano, room mic, etc…

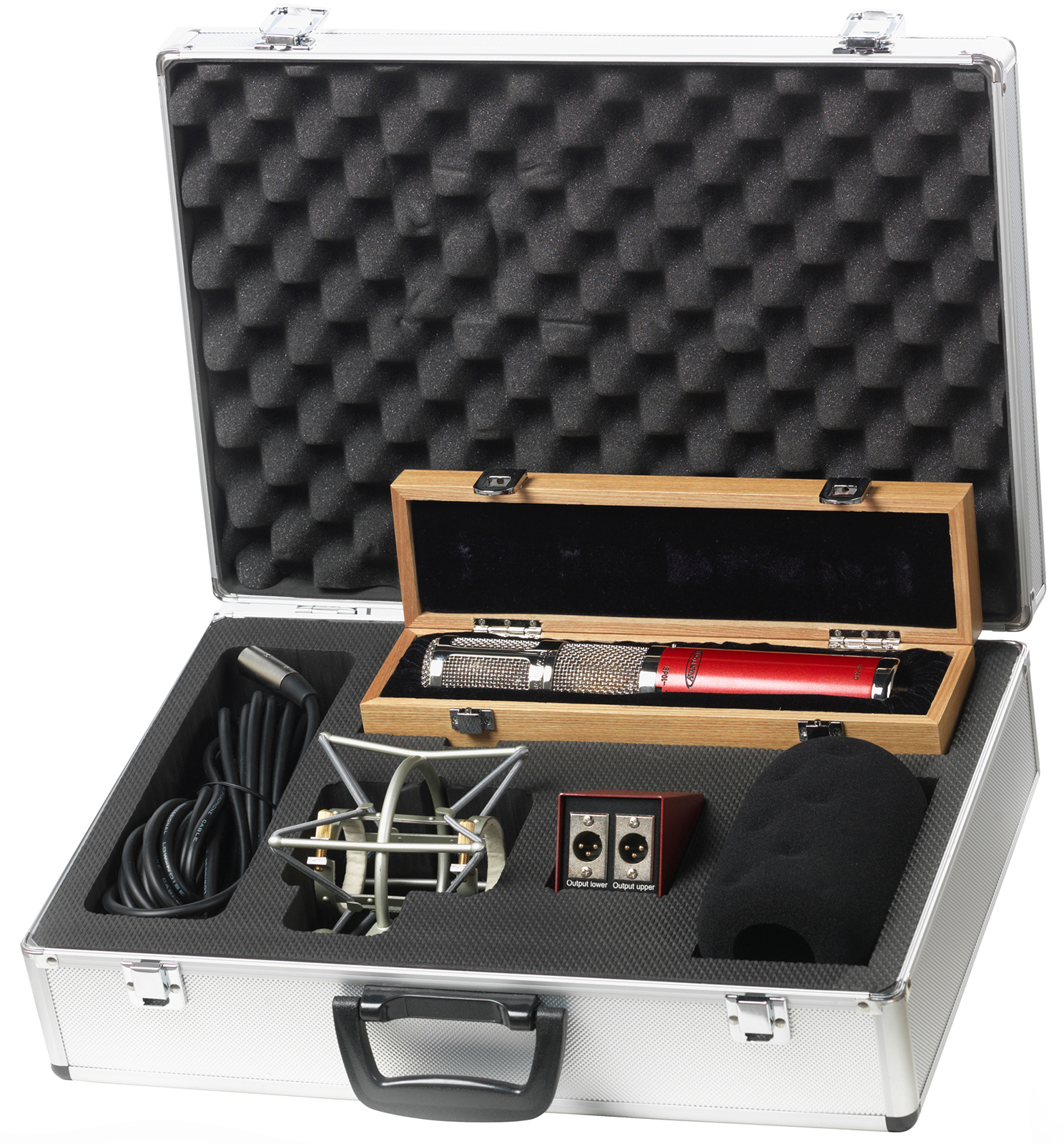

Standard Items Supplied

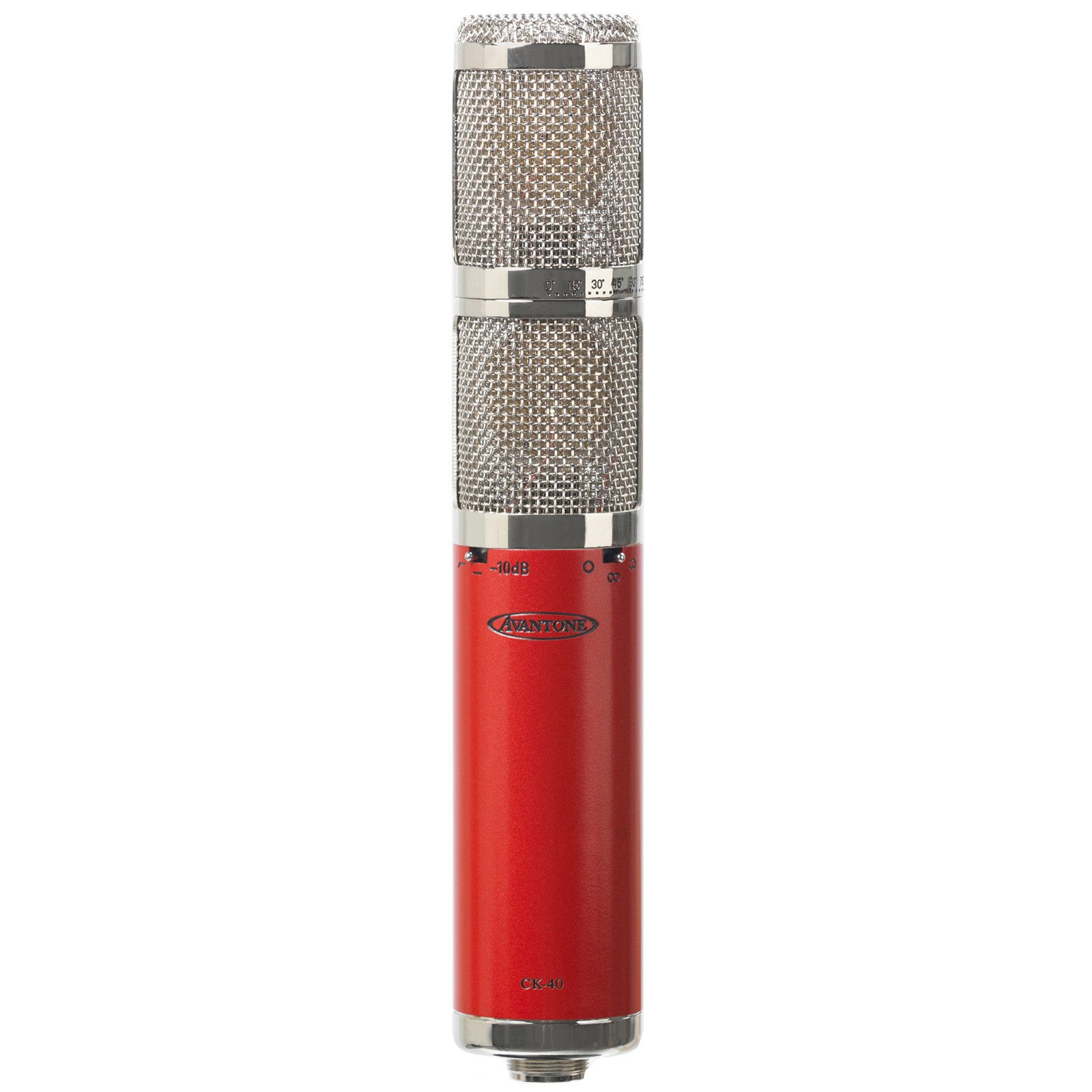

• Avantone CK-40 Stereo Multi-Pattern FET Microphone

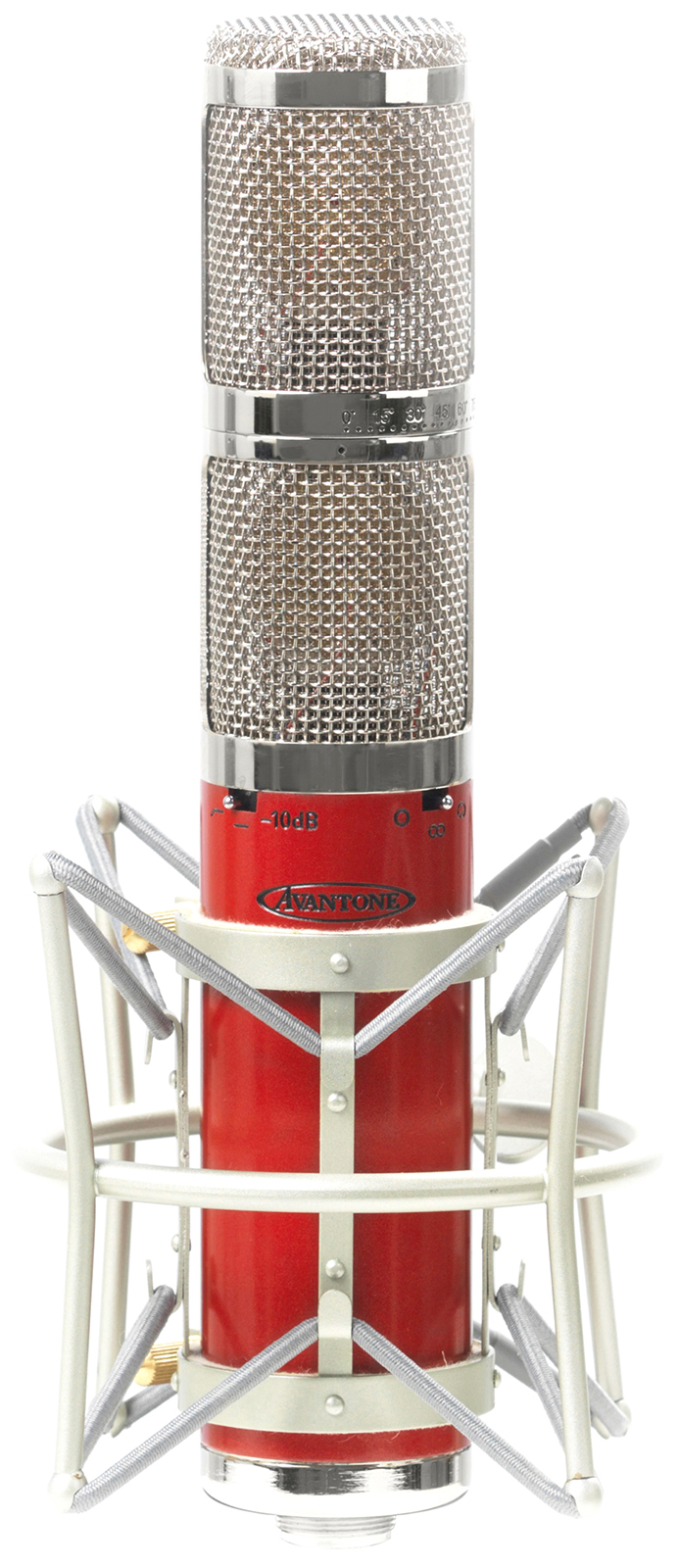

• Avantone Custom Retro Shockmount W/ Extra Elastic bands
• 1 x 2 Splitter Box (Stereo Breakout Box)
• Elegant padded genuine wooden Mic box
• 30″ 5-pin cable
• Foam wind filter
• Padded Aluminum storage / travel case
• Owners Manual
Type: Stereo True Condenser Microphone
Polar Pattern(s): Cardioid, Omni, Figure-8 (x2)
Capsule: (2) Dual plate 35mm gold sputtered diaphragm / brass assembly
Frequency Response: 20-20,000 Hz +/- 3dB
Output Impedance: <=250 Ohms / transformer isolated
Sensitivity: -40dB
S/N Ratio: 77dB re 1Pa
Maximum SPL: 147 dB (0.5% THD @1000Hz)
Equivalent Noise Level: 17dB (A weighted EC651)
Output Connector: Male XLR 5 pin with included breakout box and cable
High-Pass Switch: 80 Hz 6dB/octave
Attenuation Switch: -10dB
Power Requirement: Standard 48 Volt Phantom (x2) 3mA current consumption
Dimensions: 27.6mm X 49mm
Weight: .95 kgs / 2.1 lbs
Finish: Polished Nickel trim / Metallic Cabernet Red Body
