Beschrijving

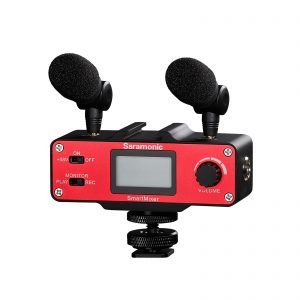

The Saramonic SmartMixer is a compact and lightweight audio mixer with phantom power and amplifier, ideal for iOS and Android mobile devices video production.
The mixer features one mini XLR input for balanced microphone and two microphone/line inputs for the included condenser microphones or other user-supplied microphones. A volume control knob and level meter allow easy adjustment of the input level. A headphone monitor output allows you to monitor the input and playback audio.
It comes with an aluminum handgrip for recording on the move, or it can be mounted on a tripod for stationary use. The included device holder allows the SmartMixer to be used in either landscape or portrait orientations.
The audio quality and versatile operation of the SmartMixer make it ideal for both professional and in-home applications.
- Improves audio quality of smart phone
- Two 1/8’’ (3.5mm) stereo mic/line inputs
- One mini XLR microphone input (a mini-XLR to standard-XLR cable included)
- +48V phantom power
- One 1/8’’ (3.5mm) stereo line output to phone
- One 1/8’’ (3.5mm) headphone monitor output
- PLAY/REC monitor switch
- Independent L/R level meters
- Volume control knob
- Includes two plug-in power condenser microphones
- Includes a device holder and aluminum hand grip
- Power provided by 9V battery
Frequency Response: 20 Hz to 20 Khz, +/-0.5 dB
SNR: 82 dB @ 1 kHz, -30 dBu input
Distortion: Less than 0.03% @ 1 kHz, -30 dBu input
INPUT 1 GAIN: 15 dB
INPUT 2 GAIN & MINI XLR Jack: 15 dB
INPUT 1 & INPUT 2 Power: 5V power supplies
MINI Jack Phantom Power: 48V power supplies
VU Meter: -18 dB to +3 dB in 3 dB increments
Power Requirements: 9V alkaline or lithium battery
Dimensions: L 95 x W35 x H298 mm
Weight: 0.74 kg (26.1 oz.)
SNR: 82 dB @ 1 kHz, -30 dBu input
Distortion: Less than 0.03% @ 1 kHz, -30 dBu input
INPUT 1 GAIN: 15 dB
INPUT 2 GAIN & MINI XLR Jack: 15 dB
INPUT 1 & INPUT 2 Power: 5V power supplies
MINI Jack Phantom Power: 48V power supplies
VU Meter: -18 dB to +3 dB in 3 dB increments
Power Requirements: 9V alkaline or lithium battery
Dimensions: L 95 x W35 x H298 mm
Weight: 0.74 kg (26.1 oz.)
Picture: smartphone not included
