Beschrijving
Saramonic SR-Q2, handheld linear PCM audio recorder, X/Y stereo microphone, 24-bit/96kHz, microSD card slot, USB C connector.
Compact and handy operation interface
X/Y stereo microphone
Easy-to-read menu and LCD display
3.5mm microphone input jack
3.5mm line input jack
Built-in speaker
Records up to 96kHz/16bit .wav audio files
Adjustable input level and headphone monitor volume controls
HOLD function to prevent inadvertent operation
Powered by two AA batteries or DC 5V USB power

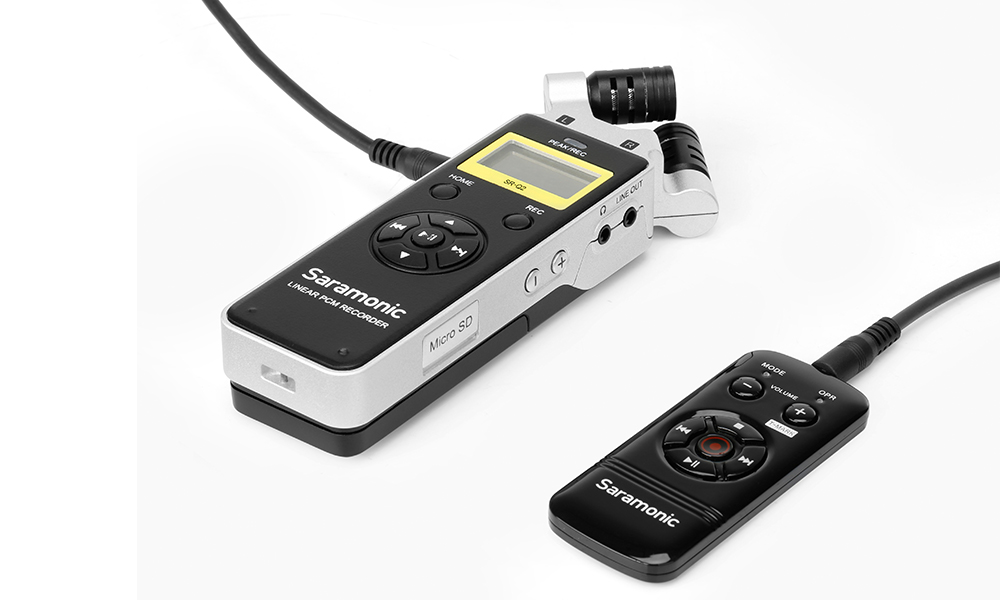

ps remote is not included which show on one of the pictures
Recording channel: 2
Recovery channel: 2
Recording format: .WAV
(44.1kHz/16bit, 44.1kHz/24bit, 48kHz/16bit ,
48kHz/24bit, 88.2kHz/16bit, 96kHz/16bit)
Playback format: .WAV
(44.1kHz/16bit, 44.1kHz/24bit, 48kHz/16bit,
48kHz/24bit, 88.2kHz/16bit, 96kHz/16bit)
A/D conversion: 24-bit, 128x oversampling
D/A conversion: 24-bit, 128x oversampling
Signal processing: 32-bit
Recording media: Micro SD card (8-32GB)
MicroSDXC (64-128GB)
LCD: LCD 128*64 ( with light )
Built-in stereo mic: 90° X/Y stereo configuration
Unidirectional condenser
Minimum gain with digital attenuation: -30dB
Microphone Input: 3.5mm (1/8”) Stereo Microphone Input
Line Input: 3.5mm (1/8”) Line Level Input
Input level: 0 to -45dB
Output impedance: 2 kO
Line output: 3.5mm (1/8) stereo jack
Output load impedance: 10 kO or more
Rated output level: -10dBm
Headphone output level: 20mW + 20mW into 32O load
Built-in Speaker: 1W
USB jack: Type-C
Power required: LR6 or Ni-MH AA battery X 2
USB DC 5V
Recording hours: Alkaline Battery
13.5 hours under 96kHz/16bit (wav)
19.5 hours under 44.1kHz/16bit (wav)
Weight: 116g (4.1oz.)
Dimension: 60 (W) x 167 (D) x 30 (H) mm
