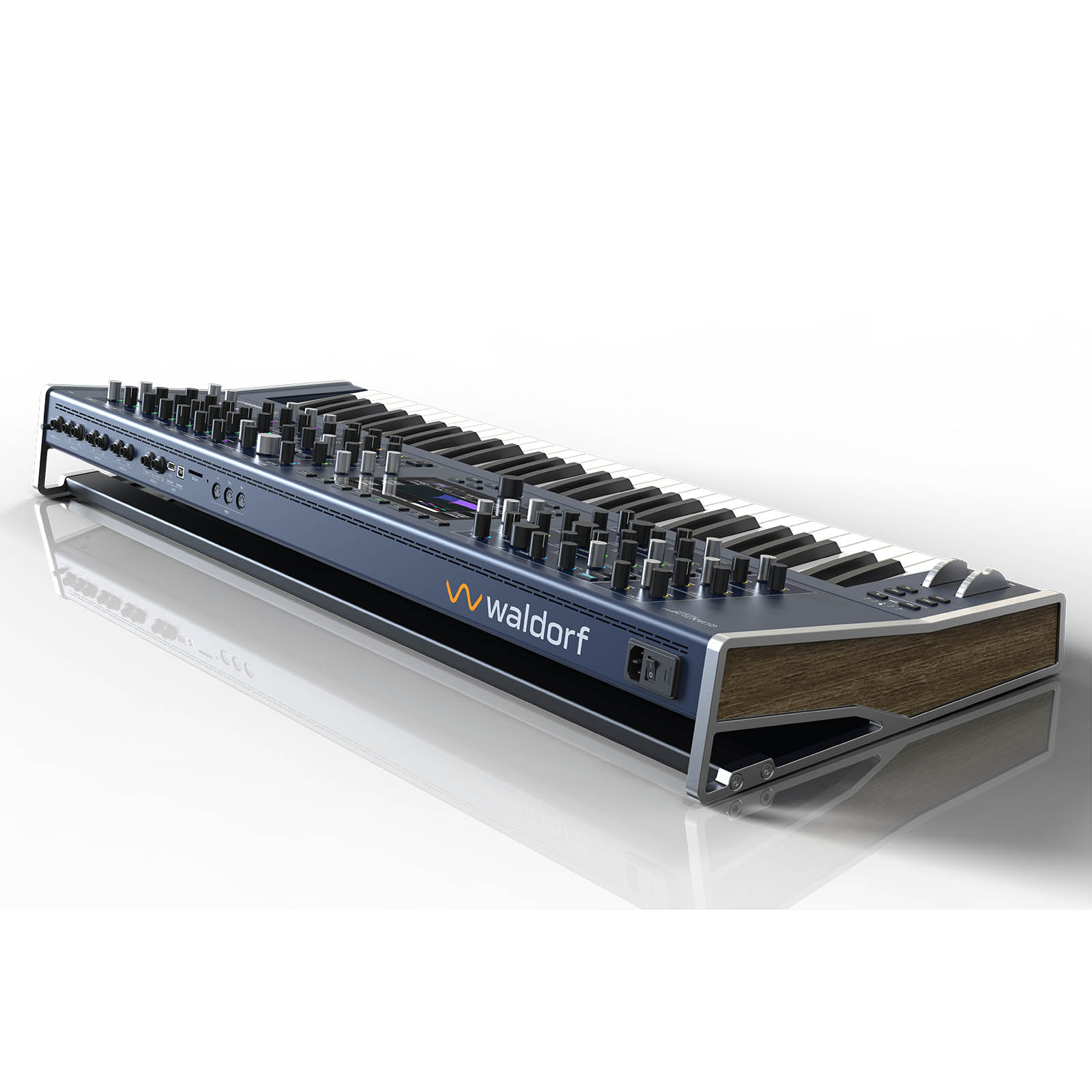

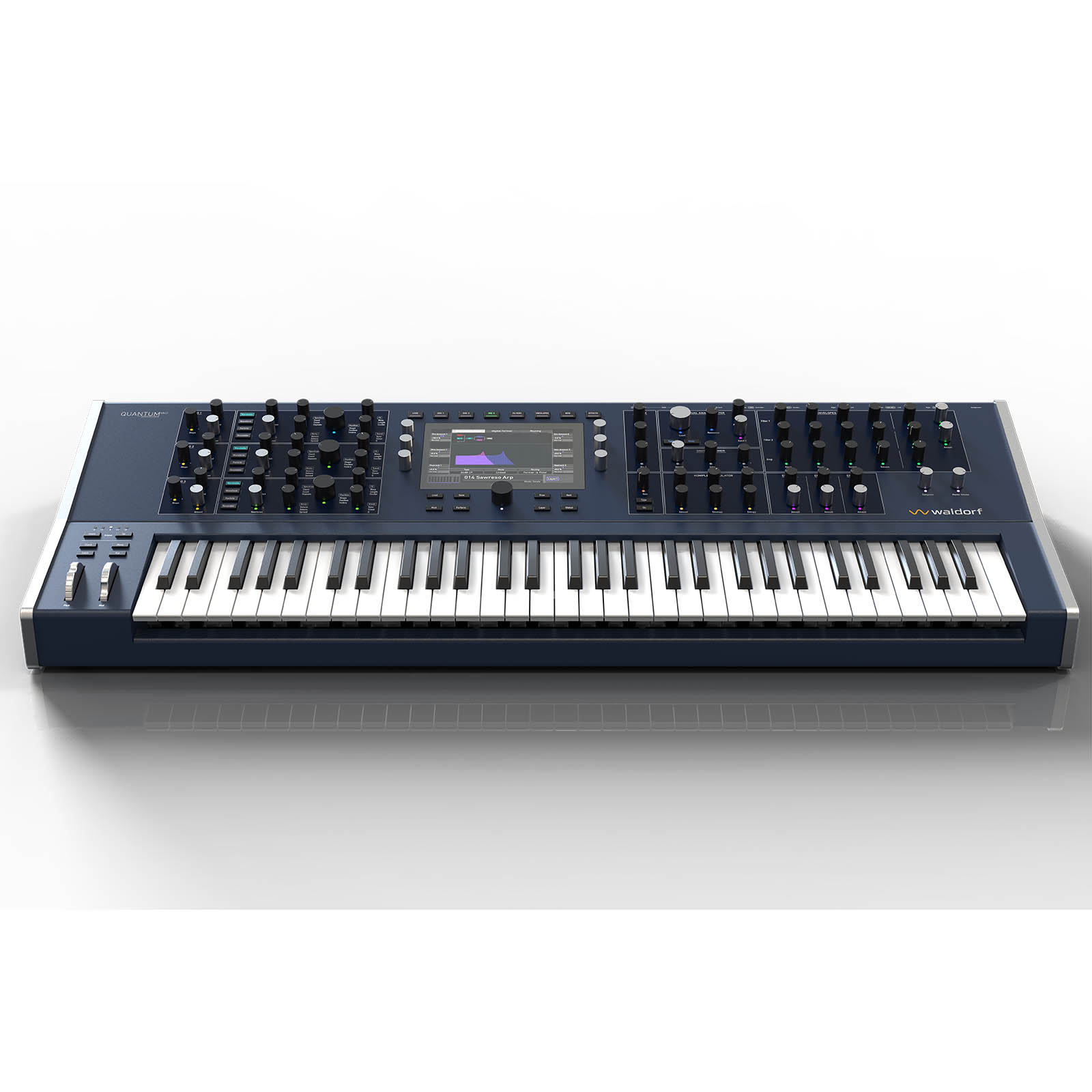

Waldorf Quantum MKII

• Hybrid Digital/Analog Polyphonic Synthesizer

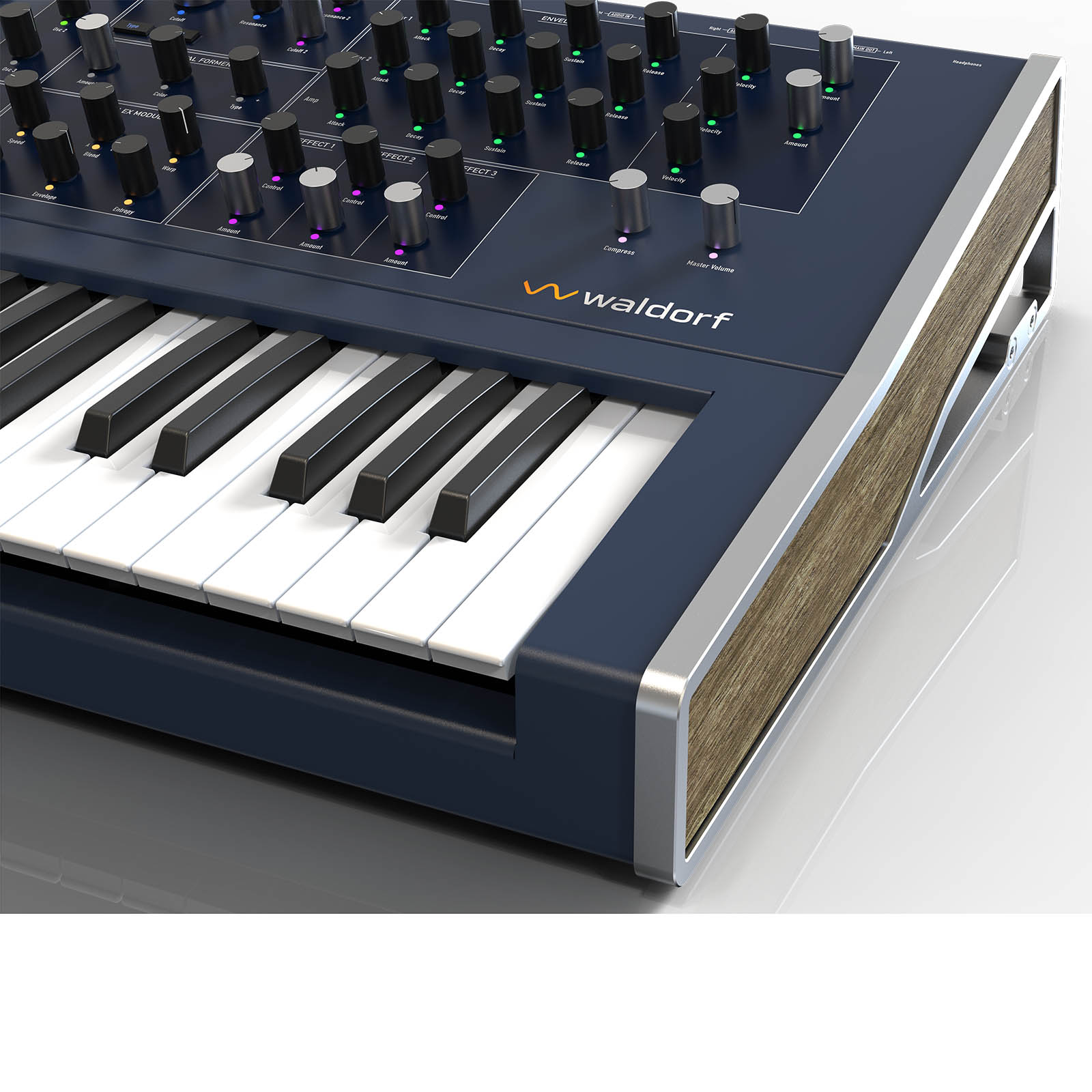

• 61 Keys high-quality Fatar TP/8SK keyboard, polyphonic aftertouch
• 8 voices with analog filter, up to 16 voices with digital filters
• Dual timbral: split or layered mode with separate stereo audio outputs
• 3 stereo digital oscillators each capable of five synthesis algorithms
• Wavetable: Waldorf style with latest additions from Nave including speech synthesis, wavetable generation from audio and new features
• Waveform: Waveform with up to 8 simultaneous waves per Oscillator in detuned or chordal mode with hard-sync, warp & PWM as well as tunable noise
• Particle: Sampler in traditional and granular mode using multi-samples or live input
• Resonator: Exciter using multi-sampling plus filter bank sound model.
• New Kernel synthesis with possibilities from classic 6 operator FM to innovative audio rate wavetable modulations
• Two analogue lowpass filters per voice each in 24 or 12 dB configuration using innovative link modes, or alternatively two digital multi-mode filters
• Digital former: Additional digital algorithms per voice like comb filter, high-pass, band-pass & notch filters (Nave, Largo or PPG models), bit-crusher, drive and more
• Flexible routing system for order of filters & digital former and individual oscillator routings
• 6 LFOs in poly and global mode with extensive parameter set
• 6 loopable envelopes
• Komplex: multistage LFO/envelope modulator
• Extensive modulation matrix with 40 slots and easy via-controller assignments
• Intuitive modulation assignment via panel elements and control LEDs
• Master effect rack of 5 slots for each timbre choosing from FX like phaser, flanger, chorus, reverb, drive, eq and more.
• Compressor for main output
• Step sequencer with step recording, parameter automation and scale-based pitch quantization
• Microtonal pitch configurations capable of importing Skala scl files
• Capable of polyphonic aftertouch via internal keybed or external MIDI inputs
• Chord and latch buttons
• Unisono mode
• Module-based preset system for effects, oscillators, step-sequenzer and Komplex modulator
• Single-function potentiometer and encoder controls for intuitive editing
• Visualisation and deeper sound editing via context-sensitive high-resolution capacitive multi-touch display
• Spectrum Analyzer and Oscilloscope at various processing stages
• Up to 10,000 sound patch capacity organized by banks, attributes, author and patch number.
• Favourites lists for quick recall of sound patches like for set-lists etc.
• Pre-loaded with wide variety of patches by acclaimed sound designers
• MIDI output of local keyboard, wheels and assignable panel elements
• Automation of sound parameters from MIDI inputs via MIDI CC learn function
• Recording of samples from audio inputs or self-recording of audio outputs
• 4 GB*) internal Flash memory for presets and wavetables, 59GB internal sample storage
• Pre-loaded with approx. 2 GB sample data

• On board audio file editor
• Export & import of presets, sample & wavetable via SD card or USB drive
• Import of Nave presets and selected legacy FM .syx files
• Mod wheel can be assigned to any parameter which can be modulated in the matrix or via quick assign
• Pitch wheel can be assigned to each oscillator individually
• Weight: 17.8kg
• Dimensions: 1006 x 401 x 131 mm

Sampling capabilities Each of the 3 Oscillators of a single timbre can be used in one of three modes using samples:

• Stereo Multi-Sampler with looping and reverse playback
• Granular Sampler with extensive parameter set
• Resonator model using sampler as exciter
• Samples are organized using key and velocity maps, selections rules like round robin, random etc., and individual pitch, gain and pan settings.
• Samples are stored in internal Flash memory of 59GB capacity pre-filled with 2GB specially made for Quantum factory samples.
• New samples can be recorded from external stereo audio inputs, or from self-recording Quantums own engine. Samples can also be imported an stored to internal Flash via SD card or USB drive using WAV and AIFF file format (44.1kHz sample rate).
• The Quantum allows for a huge range of sample-based sound design capabilities from classical synths sounds to uncharted territories.
• It’s worth noting that the sample use in the Quantum is always within a synthesizer’s sonic context, and it is not meant to work as a “bread and butter” sample keyboard to play back like traditional sampling instruments nor third party libraries.

Huge range of arpeggiator parameters:

• 7 Algorithms to choose from like up, down, random etc.
• Octave range
• 7 Sort Orders
• 3 Velocity Modes
• Gate length
• Swing
• BPM
• Beat Division
• Rhythmic patterns
• Reset Modes
• Keyboard Latch chordal and non-chordal

If that’s not enough, individual patterns can be created in the step sequencer including transpositions and scale quantisations. Connections:

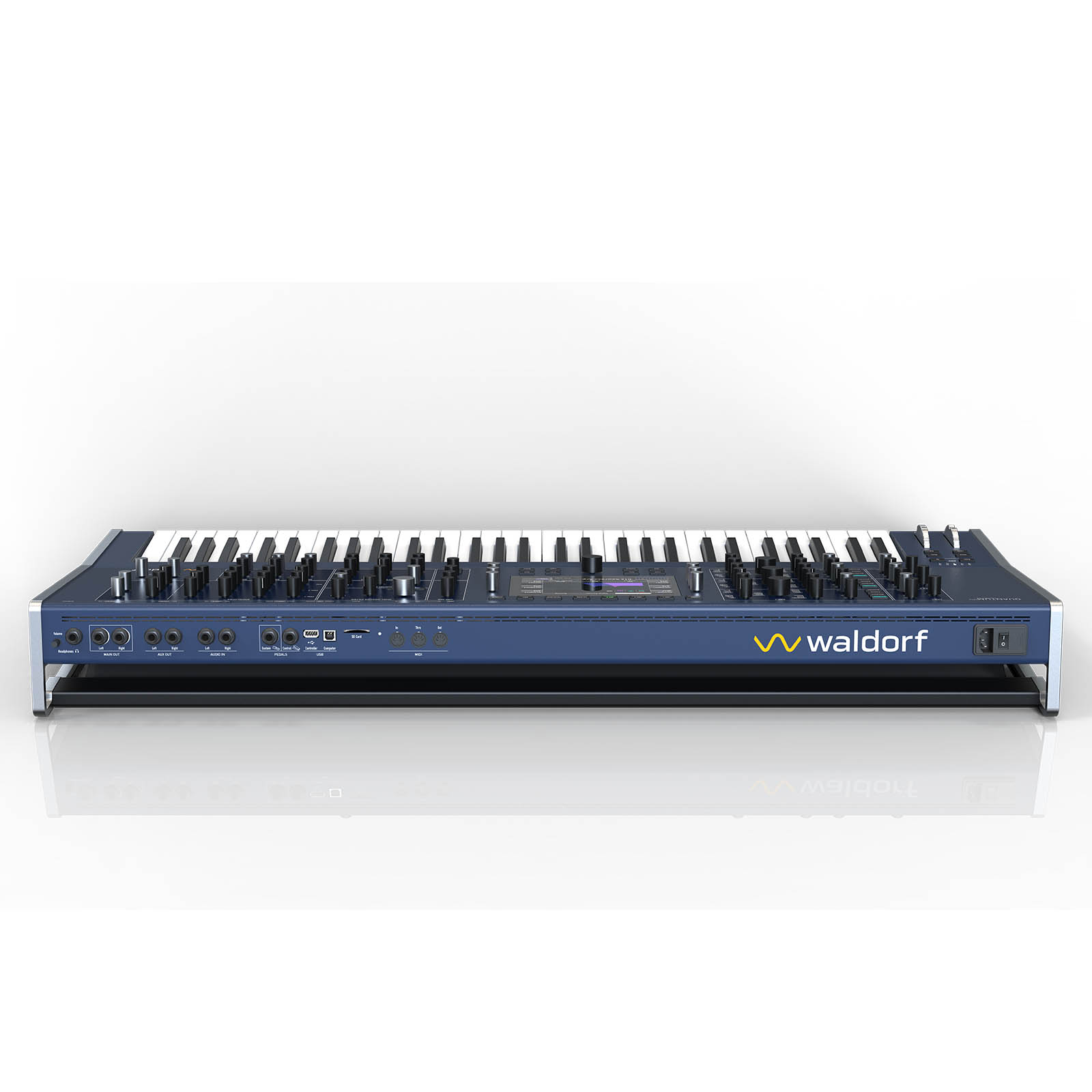

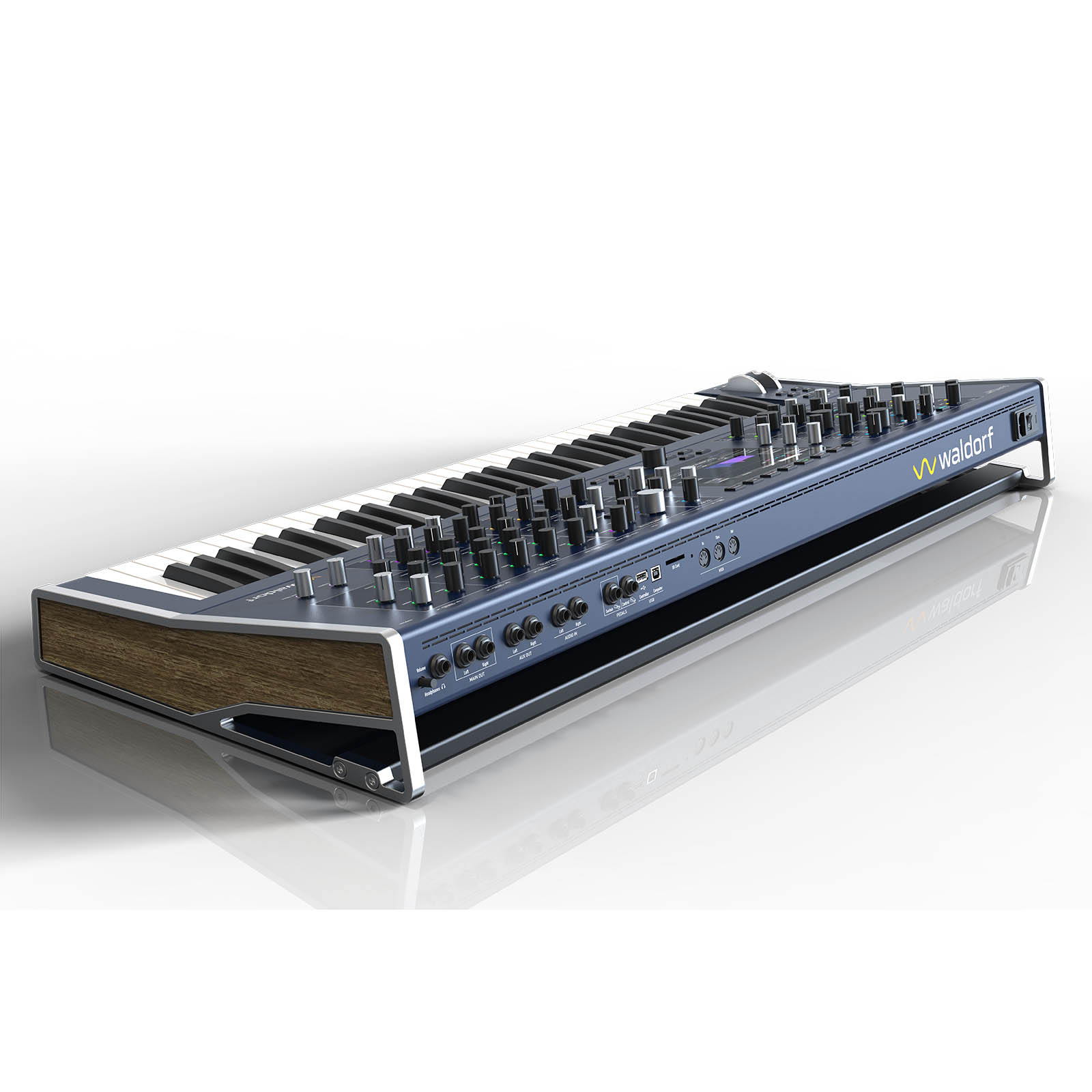

• 2x stereo audio outputs for main and aux timbres
• Stereo audio input for sample recording and real-time processing
• High-Quality 24bit A/D and D/A converters
• Headphone out with separate level adjustment
• Sustain pedal input
• Control pedal connector also capable of CV input (0-5V sensitivity)
• USB host type A connector for interfacing MIDI controller or USB drives for sample/preset exchange and software updates
• USB device type B connector for interfacing computer or other class-compliant MIDI USB hosts like iOS devices
• SD Card for sample/preset exchange and software updates
• DIN MIDI In, Out & Thru

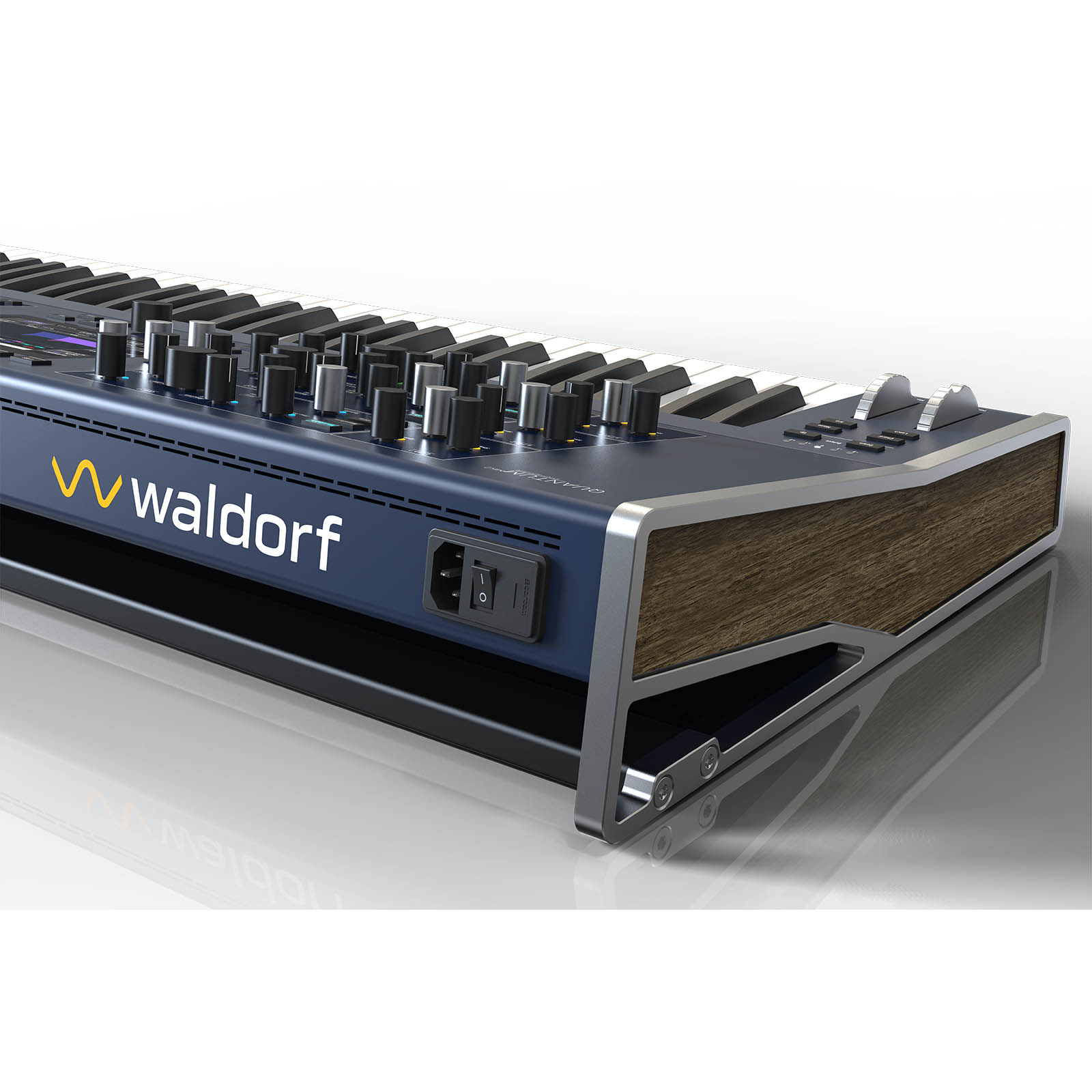

• Integrated power supply unit
