The Power of Synergy

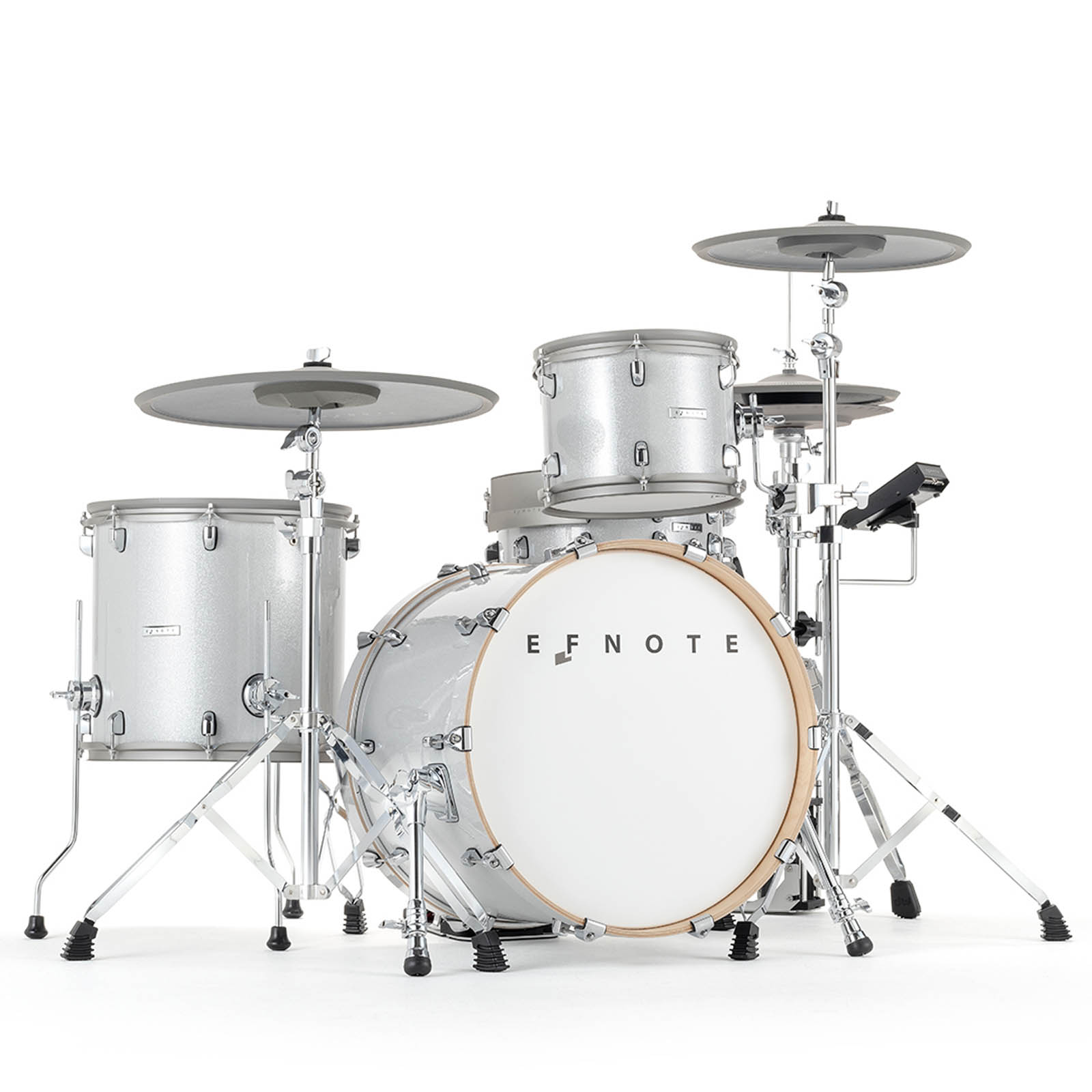

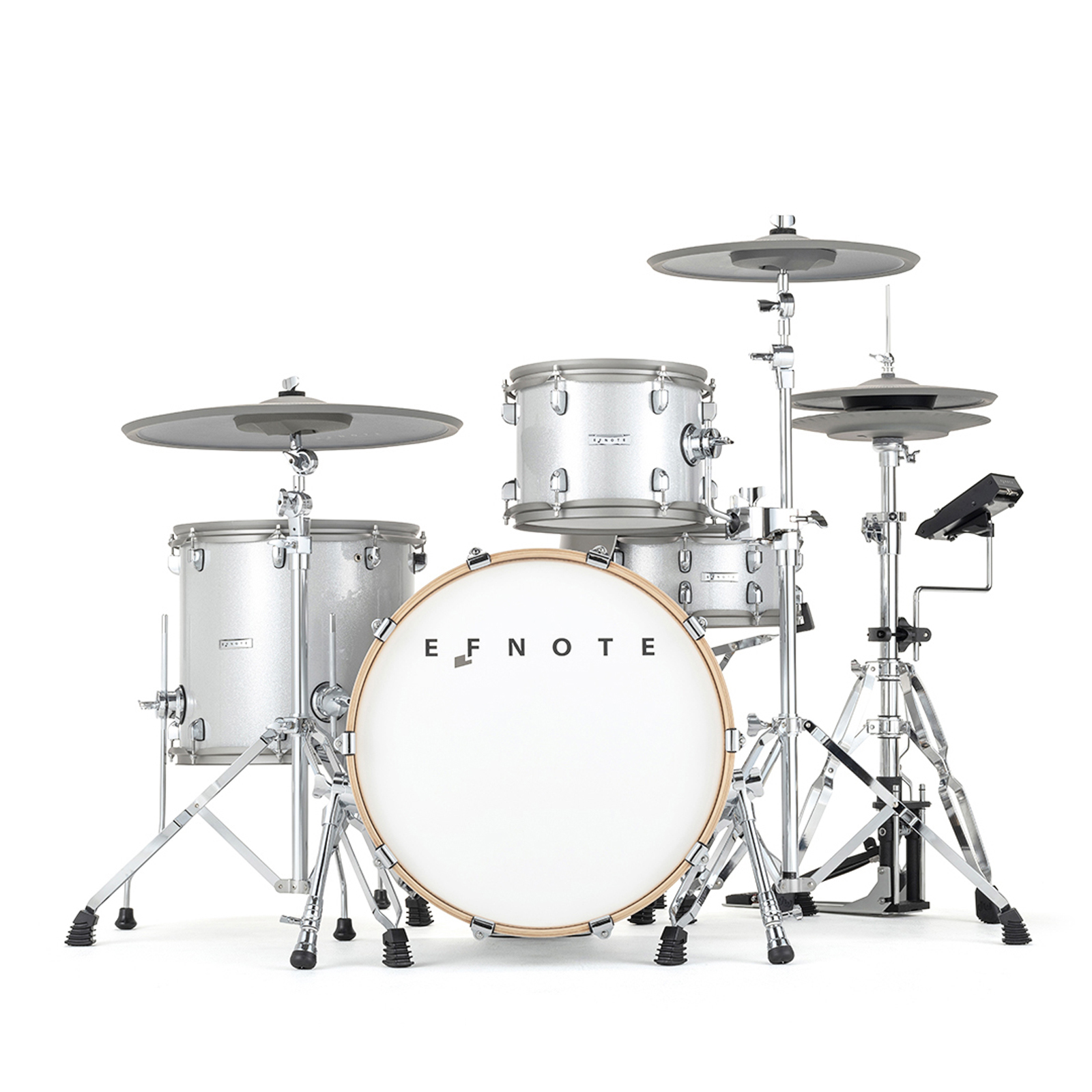

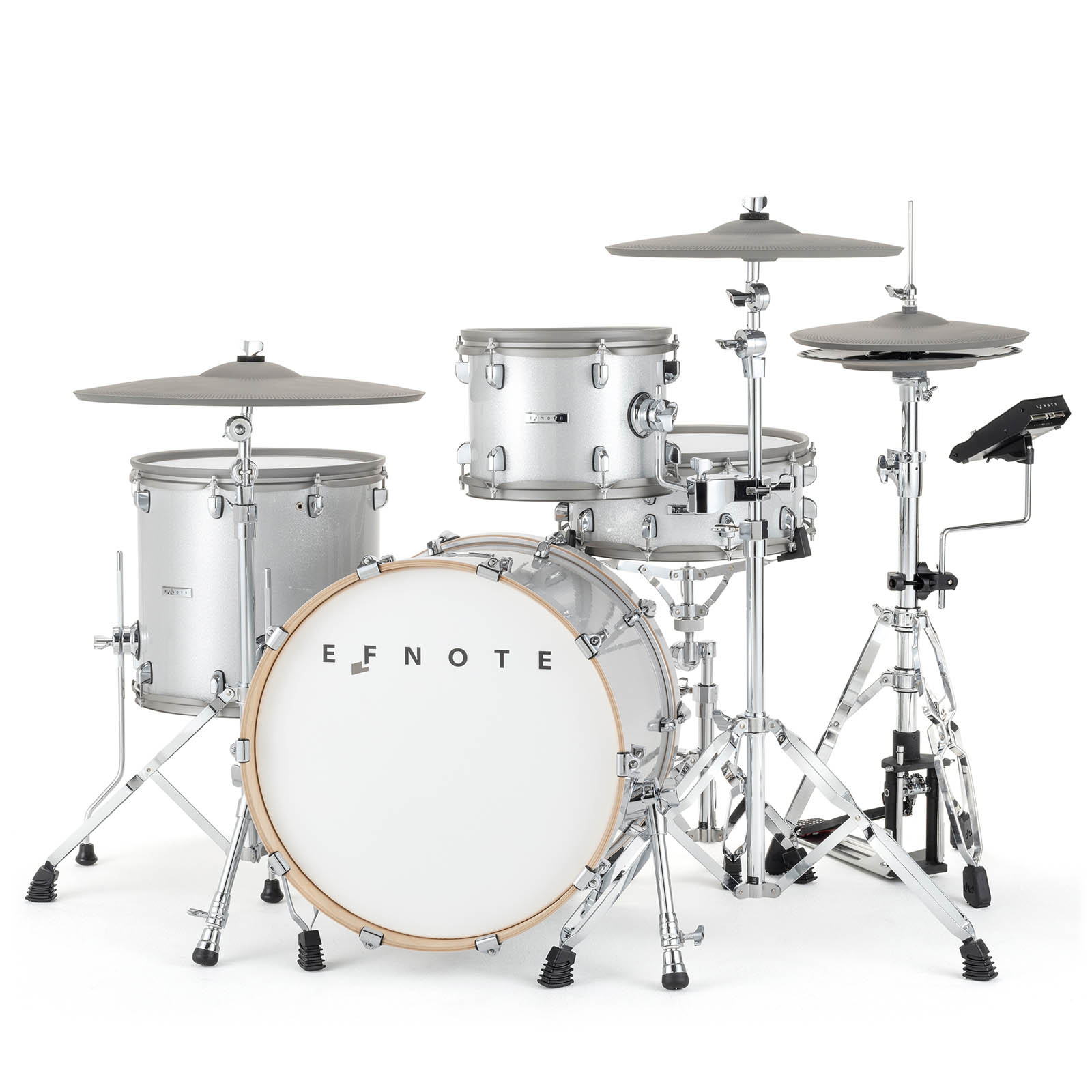

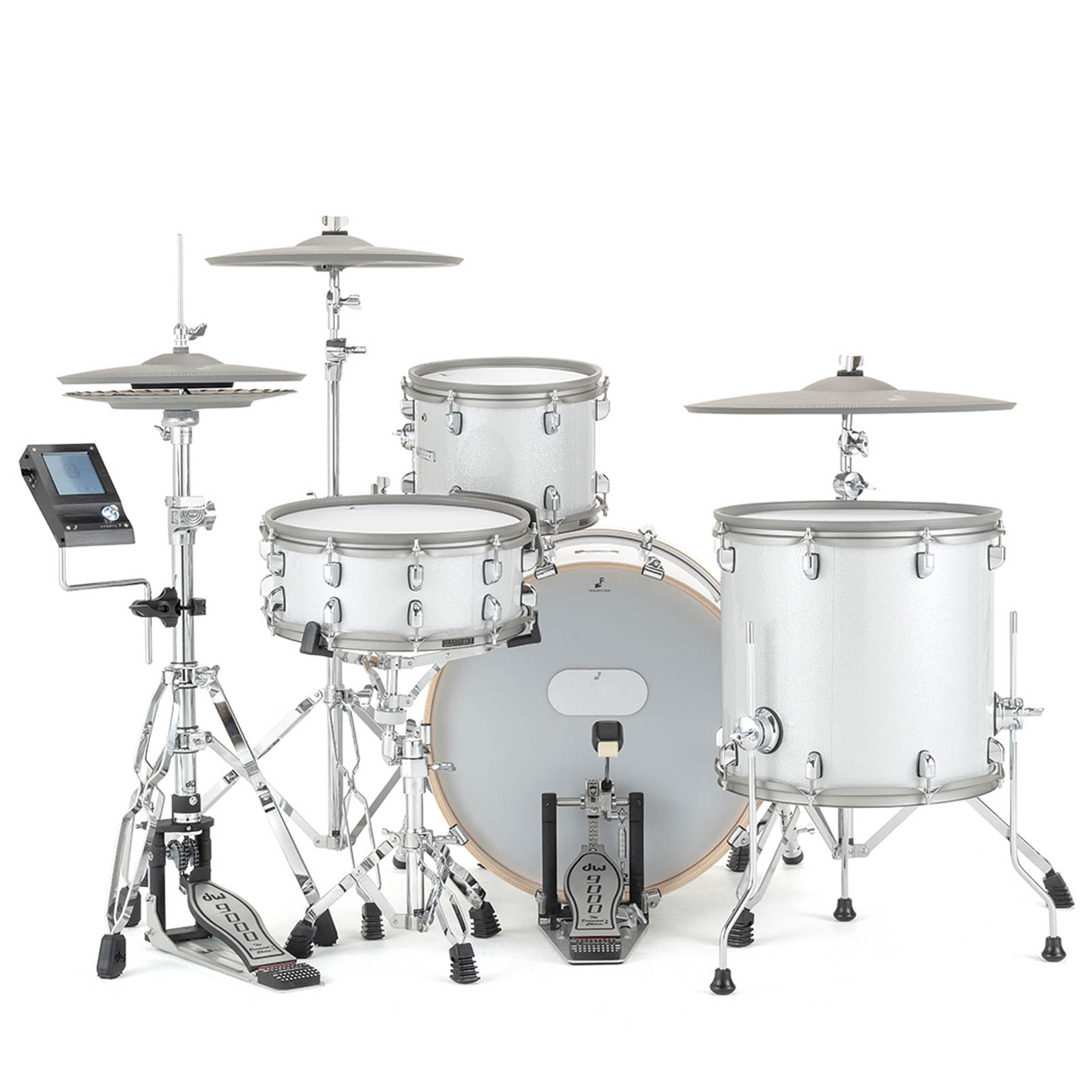

EFNOTE 7 gives drummers a whole new experience and exhilaration with the overwhelmingly realistic touch of full-scale shells/cymbals, and the brilliant sound remastered to match them perfectly.
VIDEO
Comparison sheet Efnote 3, 3X, 5, 5X and 7
Specifications
Drum / Cymbal Pads

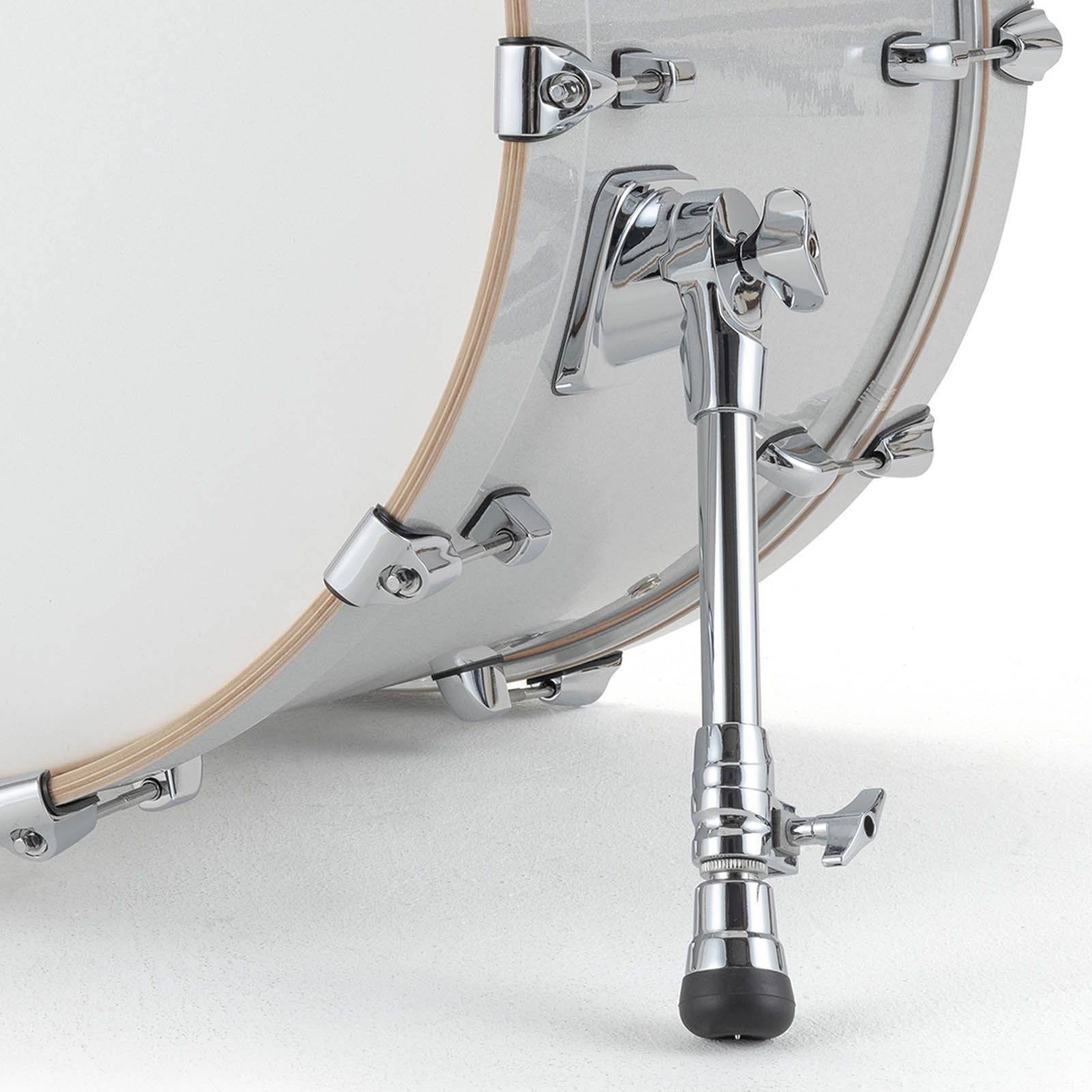

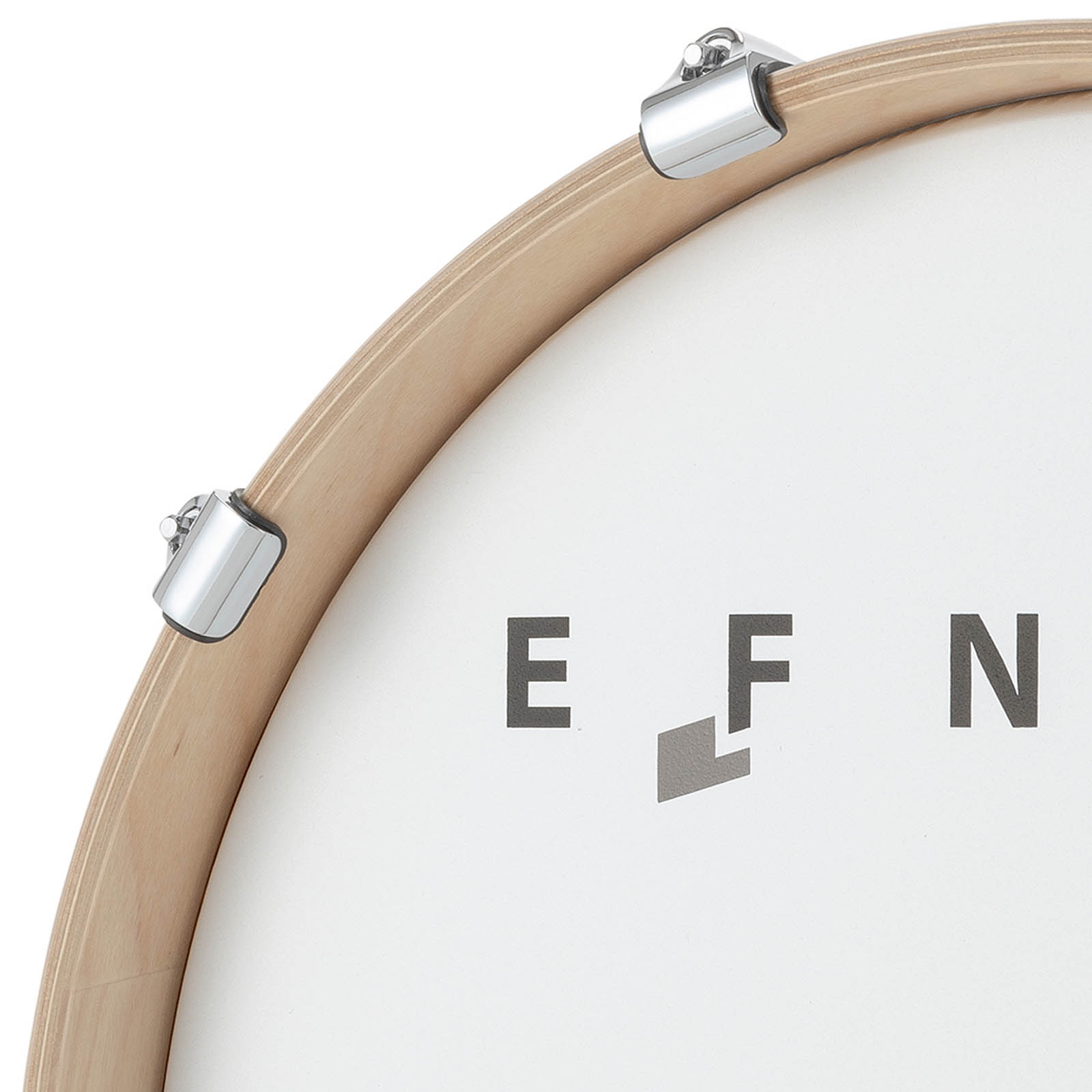

Kick
EFD-K2015
Size: 20 x 15″
Zone: Head
Sensor: Multi
Head: Double-layered mesh with beater patch
Connector: Head (TRS Phones)
Features: Wood hoop

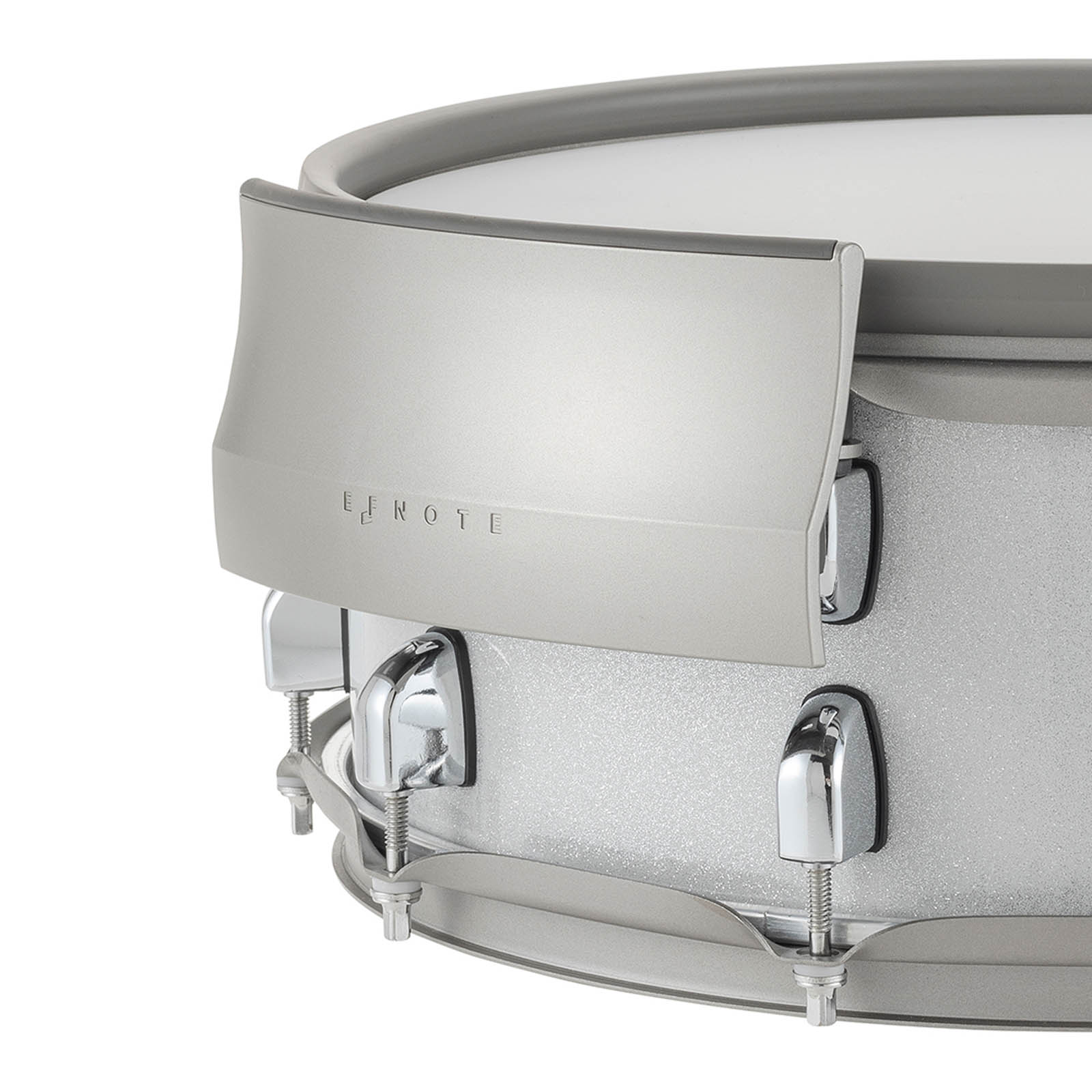

Snare
EFD-S1455
Size: 14 x 5.5″
Zone: Head / Rim / Side-Rim
Sensor: Multi
Head: Double-layered mesh
Connector: Head/Rim, Side-Rim (2x TRS Phones)
Features: Birch shell, Colored hoop rubber, Side-Rim

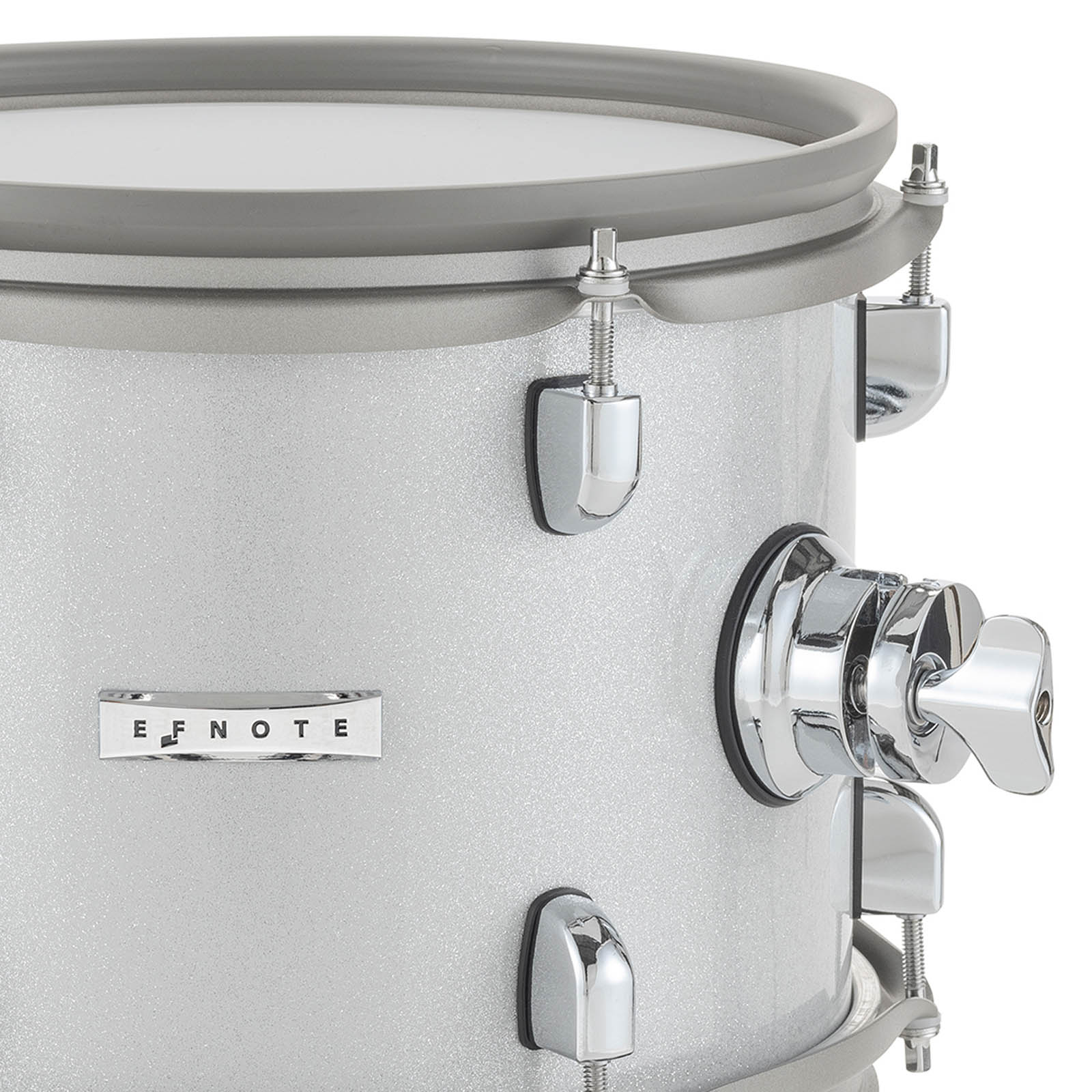

Tom
EFD-T1180
Size: 11 x 8″
Zone: Head / Rim
Sensor: Multi
Head: Double-layered mesh
Connector: Head/Rim (TRS Phones)
Features: Birch shell, Colored hoop rubber

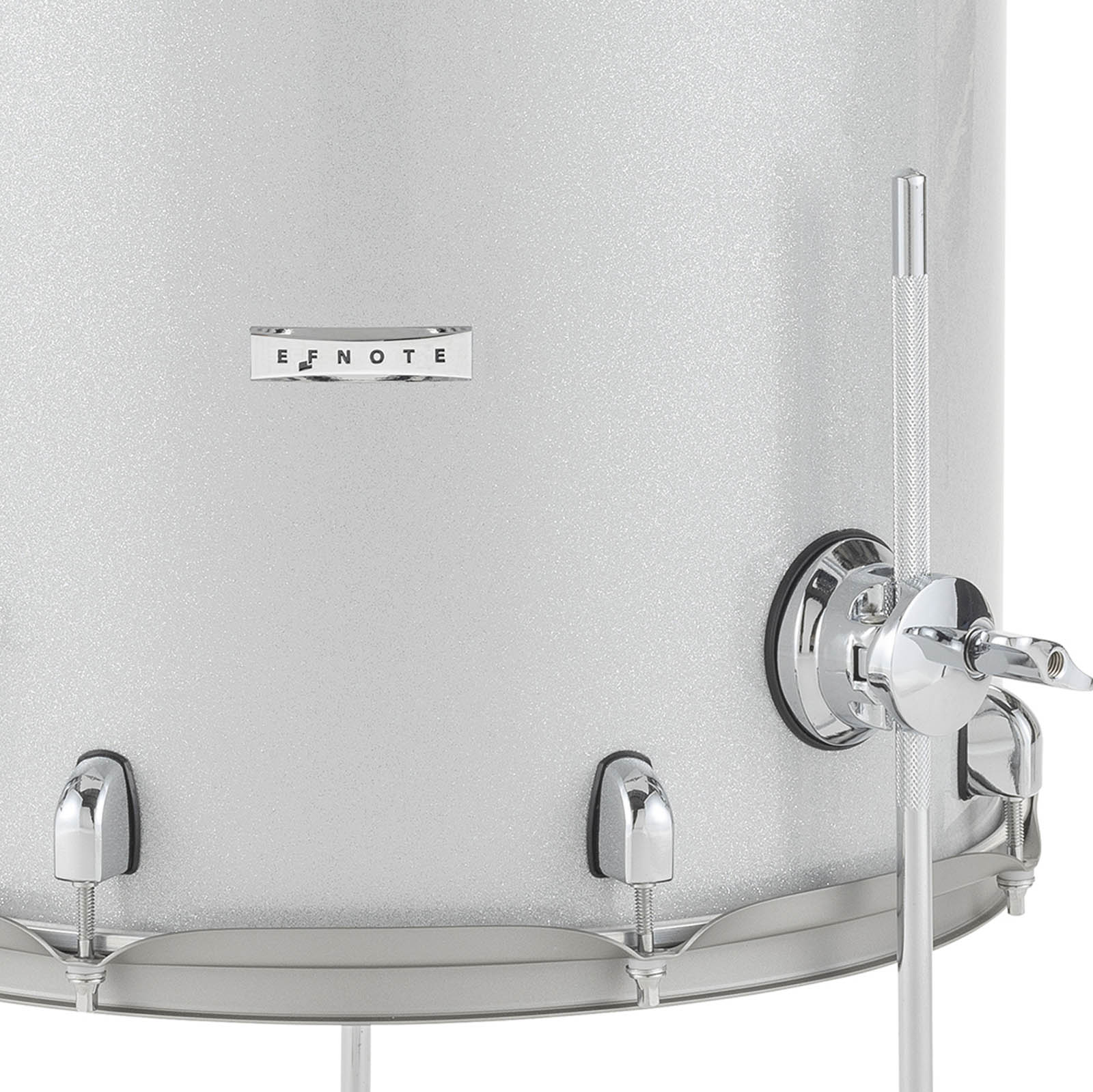

Floor Tom
EFD-T1515
Size: 15 x 15″
Zone: Head / Rim
Sensor: Multi
Head: Double-layered mesh
Connector: Head/Rim (TRS Phones)
Features: Birch shell, Colored hoop rubber
Hi-Hat
EFD-H14
Size: 14″ (Top/Bottom)
Zone: Bow / Edge / Cup
Sensor: Multi (360° flat sensing + choke) / Optical
Connector: 6-pin
Features: Multi-optical sensor, Tru-motion™ hi-hat, Weight simulation, Fine engraved surface
General hi-hat stands compatible with φ12.7 mm (1/2″) hole cymbal can be used.
EFNOTE 7 sound module does not support hi-hat cup zone.
Crash
EFD-C16
Size: 16″
Zone: Bow / Edge / Cup
Sensor: Multi (360° flat sensing + choke)
Connector: Bow/Edge, Cup (2x TRS Phones)
Features: Weight simulation, Fine engraved surface

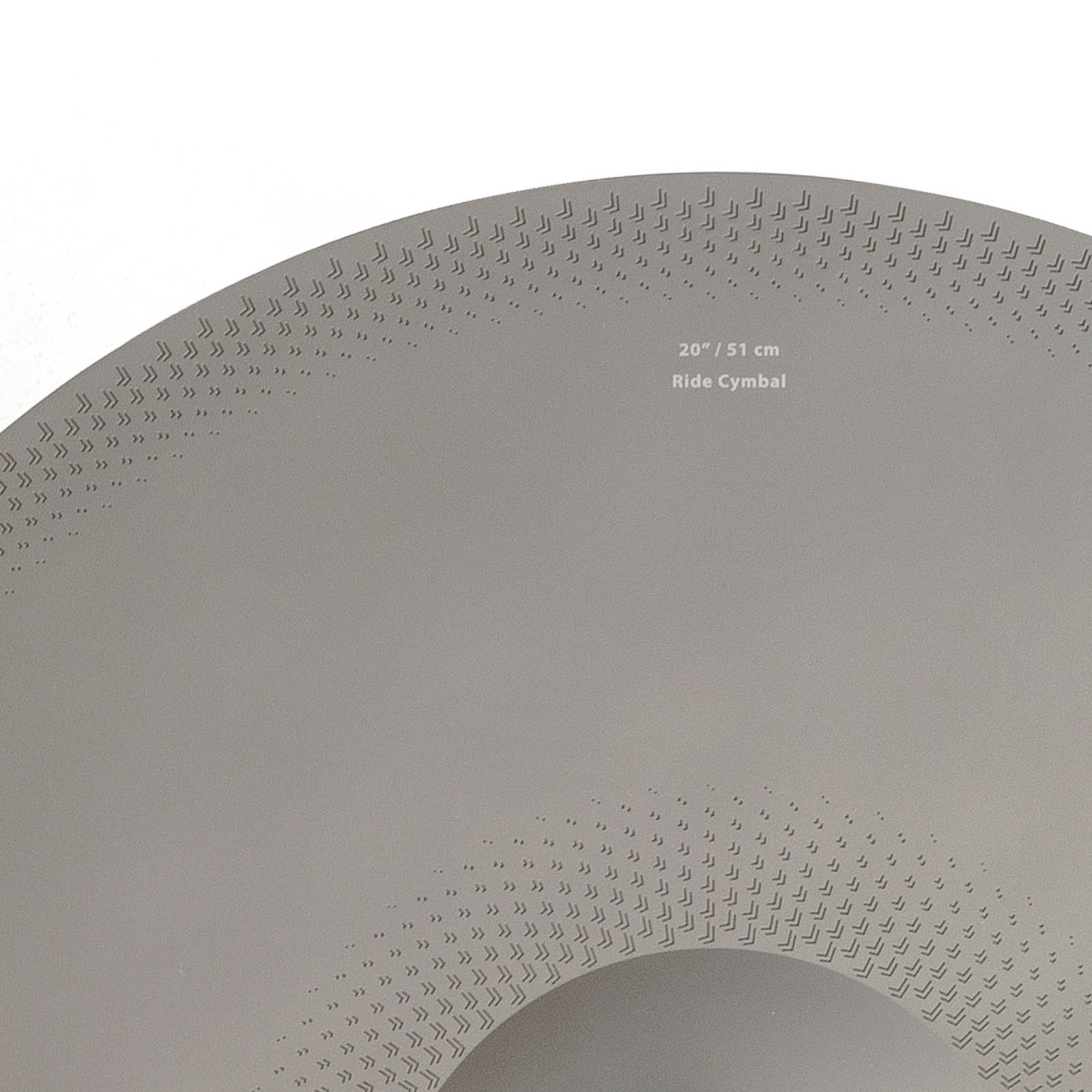

Ride
EFD-C20
Size: 20″
Zone: Bow / Edge / Cup
Sensor: Multi (360° flat sensing + choke)
Connector: Bow/Edge, Cup (2x TRS Phones)
Features: Weight simulation, Fine engraved surface, Uneven smooth surface
Sound Module: EFD-7
Trigger Interface
3-Zone: Snare, Crash 1/2*, Ride
2-Zone: Tom 1/2/3/4, HH, Crash 3
1-Zone: Kick
Crash 1/2 support 3-zone with using Tom 4/Crash 3 cables.
Audio / MIDI Interface
Line (1/2) Output: 2x TS Phone (+4dBu, Unbalanced)
Phones (3/4) Output: Stereo Mini-Phone (320 mW + 320 mW @32Ω)
Audio Input: Stereo Mini-Phone (+2dBu Max)
USB Audio: 8-ch Output / 2-ch Input (Mac/Windows ASIO)
USB MIDI In/Out
Bluetooth Audio Input
Bluetooth MIDI In/Out
MIDI Out: 5-pin DIN
Drum Kits / Instruments
Preset Drum Kits: 20 (Editable)
User Drum Kits: 80
Instruments: Acoustic Drums/Cymbals (Stereo), Percussion (Stereo), Attack Elements
User Inst Library: 128 (Can be stored customized instruments)
Edit Parameters
Level, Pan, Tuning, Muffling (for each pad)
2-Band EQ (for each pad)
Ambience Effect (8 Types)
Pad Layer
Dimensions
172 (W) x 106 (D) x 47 (H) mm
700 g
Excluding protrusions
Power
DC 12 V, 500 mA (Nominal) / 800 mA (Max)
Hardware
Snare Drum Stand
(Optional)
EFD-SS5
For 12″ to 14″ diameter snare drums
Geared basket tilter
Double braced legs
Tube diameter: φ19.1 mm (3/4″)
Height adjustment range: 500 — 650 mm
Cymbal Stand
(Optional)
EFD-CS5
Boom cymbal arm
Geared tilter
Cable holder
Middle tube diameter: φ19.1 mm (3/4″)
Boom length: 400 mm
Height adjustment range: 800 — 1,500 mm
Tom Mount
(Optional)
EFD-TM5
Ball angle adjustment
Knurled carbon steel rod
L-rod diameter: φ10.0 mm (3/8″)
Installable pipe diameter: φ19.1 mm (3/4″) — φ31.8 mm (5/4″)

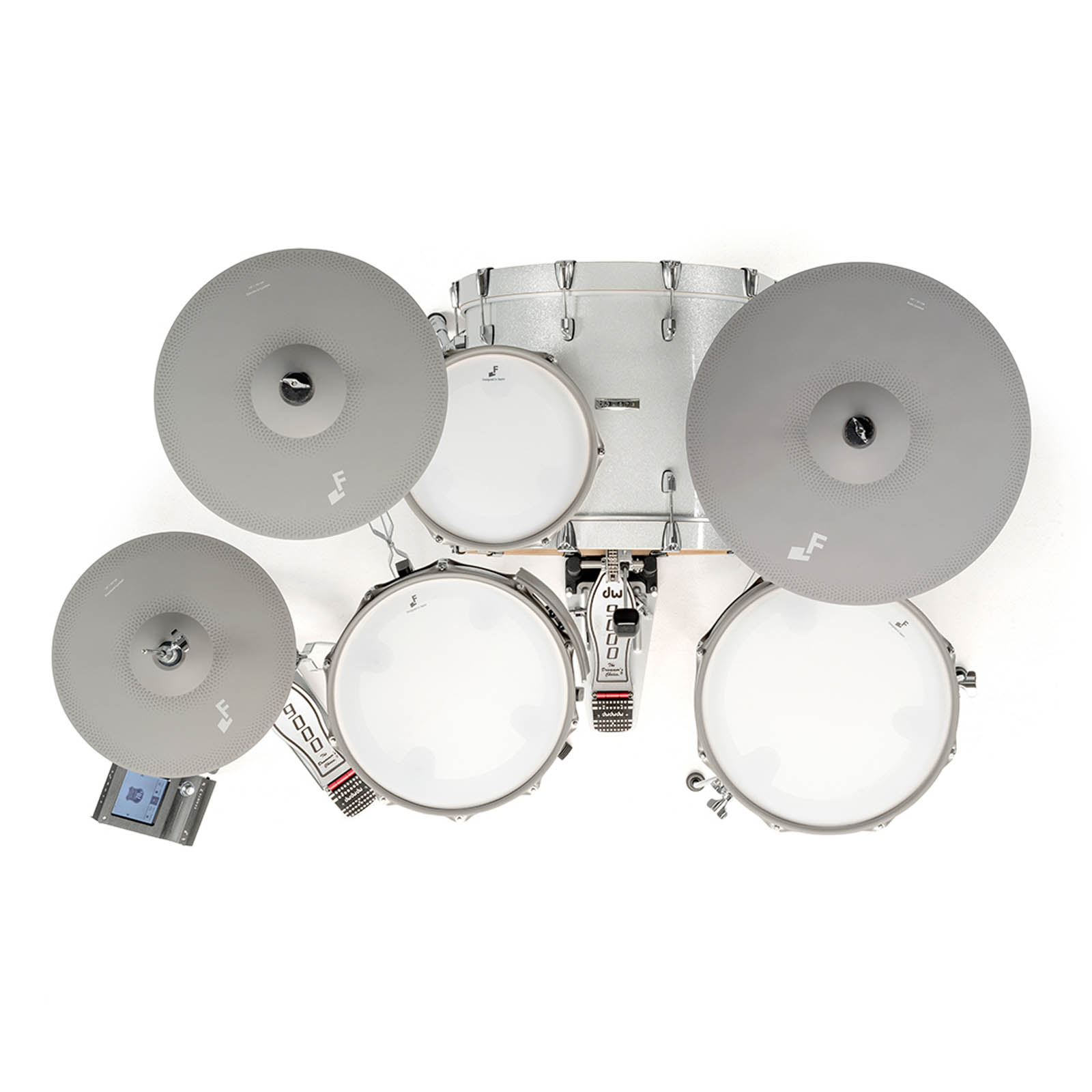

Drum Kit Placement
Placement Size
Approx. 145 (W) x 100 (D) cm
Approx. 4.8 (W) x 3.3 (D) feet
Without drum throne
Package
Accessories
Brake-out cable: EFD-MULTI-A5
Brake-out cable: EFD-MULTI-B
5x Trigger cable 3.0 m: EFD-TRS-LL3
Cable ties
Quickstart guide
Snare drum stand, cymbal stand and tom mount are optional.
Kick pedal, hi-hat stand and drum throne are sold separately.
